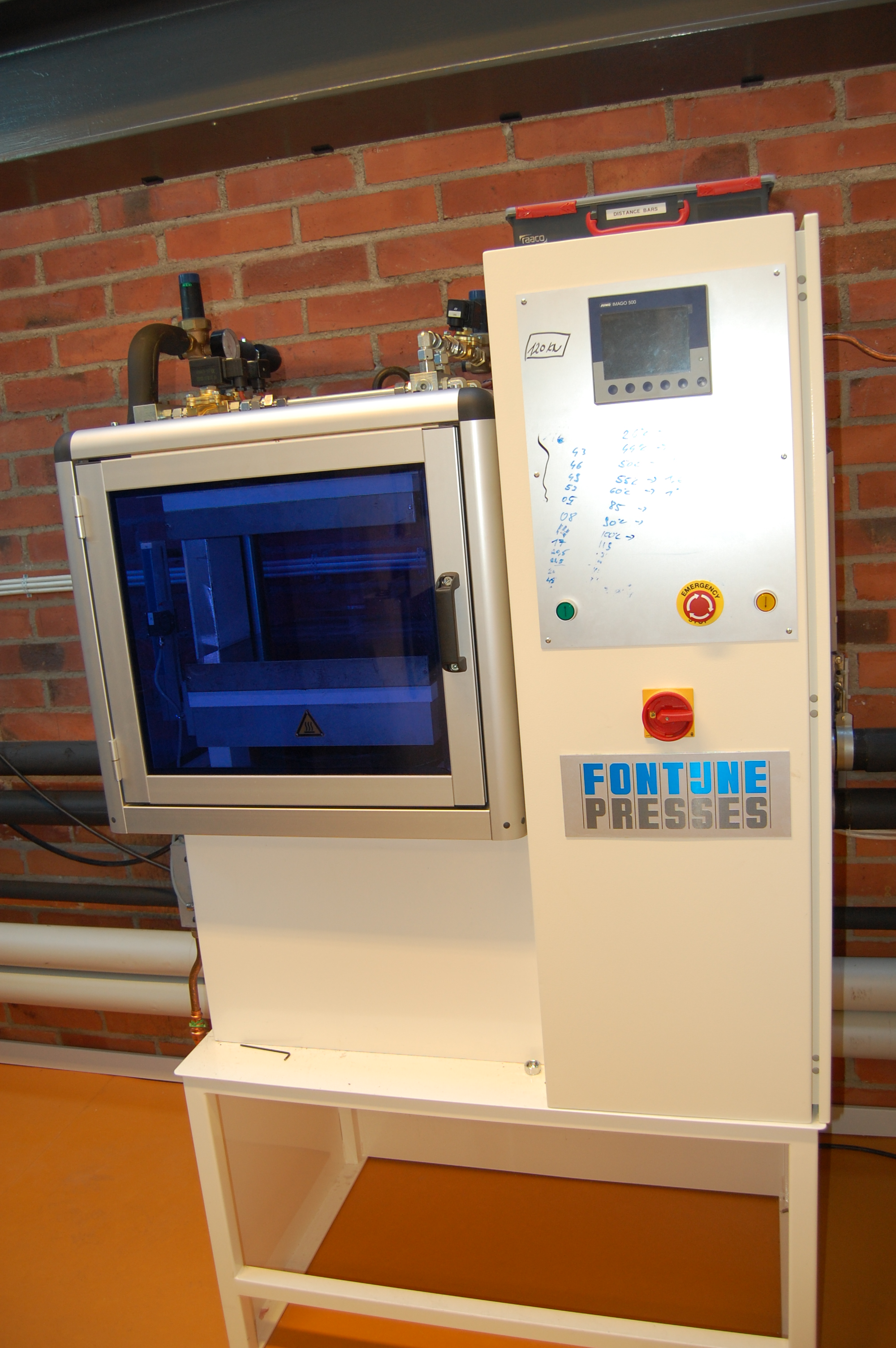

The LabEcon 600 automatically operated platen press is a hydraulic test machine equipped with heated platens and a process and program control unit that enables full control of the press cycles.  The system allow for

• control of the temperature and press force
• ramp heating and cooling
• 50 programs with 1000 segments
• up to 8 controller channels for special applications
• real time plots & numerical data display
• storage test data for future recalculations
• test procedure design and modification

Platen size: 400 x 400 mm
Closing force: 100 - 600 kN
Press opening: 200 mm
Max closing speed: 16 mm/min
Max temperature: 300 °C
Test direction: Compression
