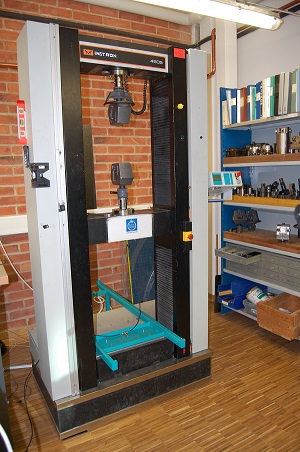

This 100 kN universal test machine (optional load cell 5 kN and 500 N and heating chamber) is an electro-mechanical machine equipped with a purpose built digital control unit for accurate control and data recording. The machine is also equipped with a purpose built oven, which provides possibilities for high temperature test. The system allow for:

• easy control of load, strain, position, test rate, temperature etc
• test procedure design and modification
• real time plots & numerical data display
• storage test data for future recalculations

Belonging to the instrument, there are several standard test grips for tension, compression and shear test as well as purpose built rigs, e.g. delamination tests, end notch flexure, slow impact test equipment and more.

Max load: 100 kN
Max test speed: 10 mm/min
Max travel: 500 mm
Max temperature: 300 °C
Test direction: Tension and compression
Extra: Optional load cell 5 kN and 500 N, heat chamber
