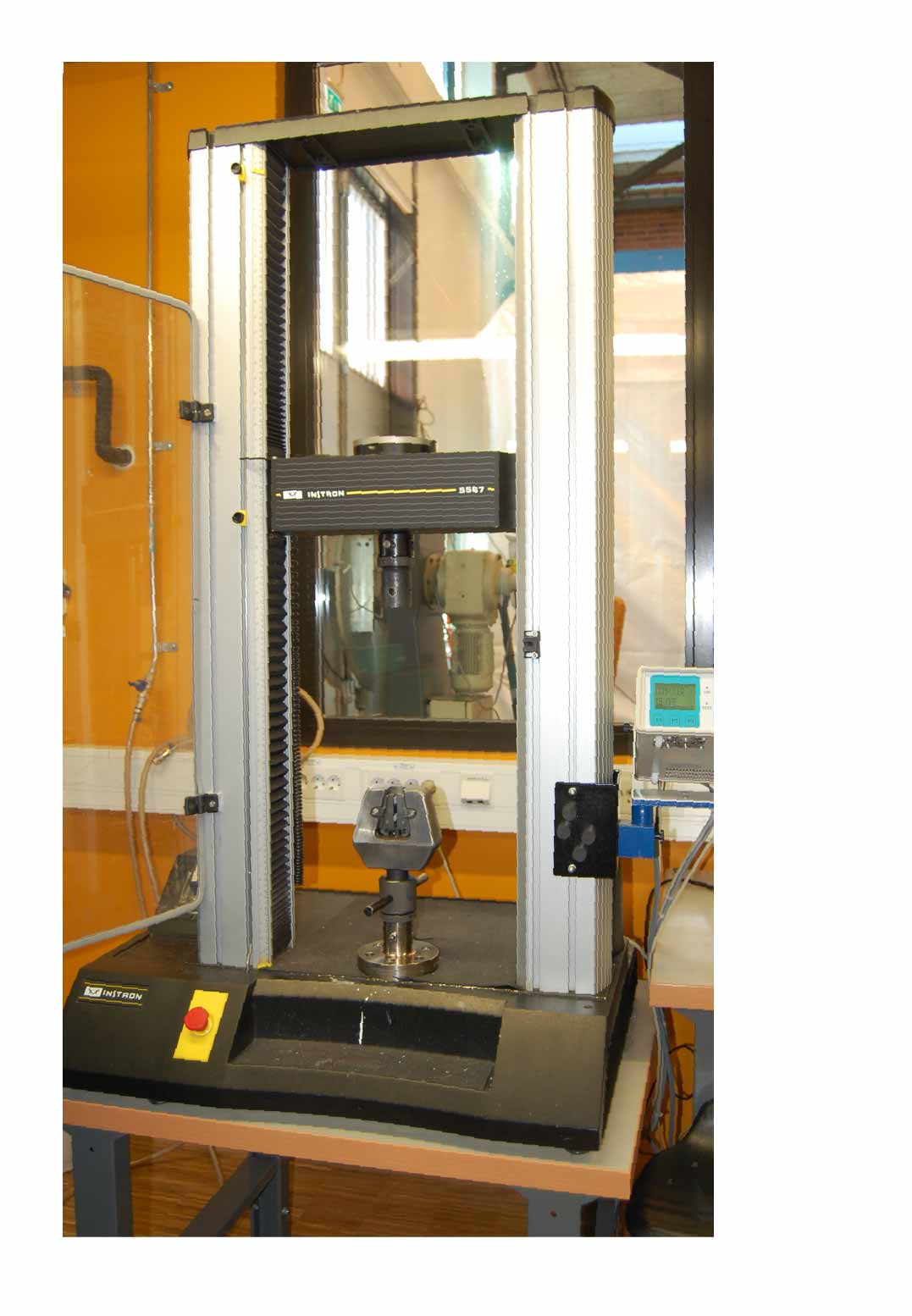

This Instron 30 kN universal test machine (optional 5 kN and 500 N) is an electro-mechanical machine equipped with a purpose built digital control unit for accurate control and data recording. The system allow for

• easy control of load, strain, position, test rate etc
• test procedure design and modification
• real time plots & numerical data display
• storage test data for future recalculations

Belonging to the equipment, there are several standard test grips for tension, compression and shear test as well as purpose built rigs, e.g. delamination tests, end notch flexure, slow impact test equipment and more.

Max load: 30 kN
Max test speed: 10 mm/min
Max travel: 500 mm
Test direction: Tension and compression
Extra: Optional load cell 5 kN and 500 N
